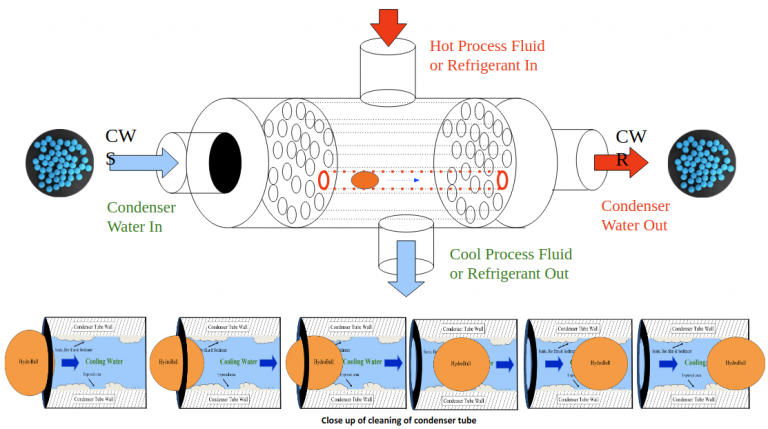

Auto Tube Cleaning System (Ball Type)

Hydroball system is the perfect cost-effective solution that eliminates equipment downtime and optimises energy utilisation of water-cooled heat exchangers (including chillers) by automatically keeping heat exchanger tubes perpetually free from effects of scaling and particulate fouling.

This ensures optimal heat exchange efficiency, contributing to prevention of unnecessary energy loss and low total-cost-of-use.

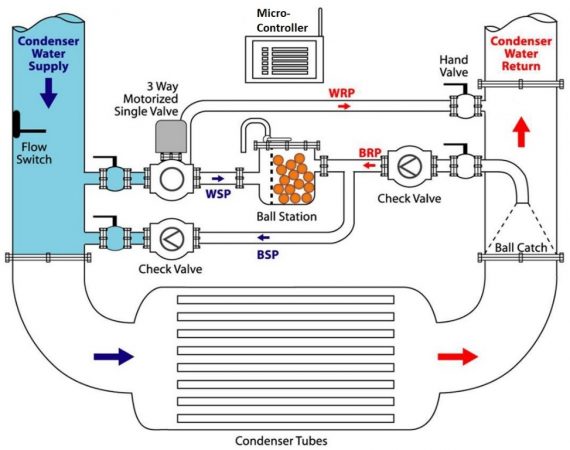

• 3 primary components: the Ball Station, the Ballcatch and the Micro-Controller.

• A single 3-way motorized valve controls the flow of water within the system.

• There is no use of pumps, compressors or diverters, nor any need for discharge of water
during operation.

• There is also a viewing glass at the Ball Station to enable visual monitoring of the sponge
balls.

BTU CALCULATOR & FLOWMETER

ABB is an established world force in the design and manufacture of instrumentation for industrial process control,
flow measurement, gas and liquid analysis and environmental applications.

Some of our popular products:

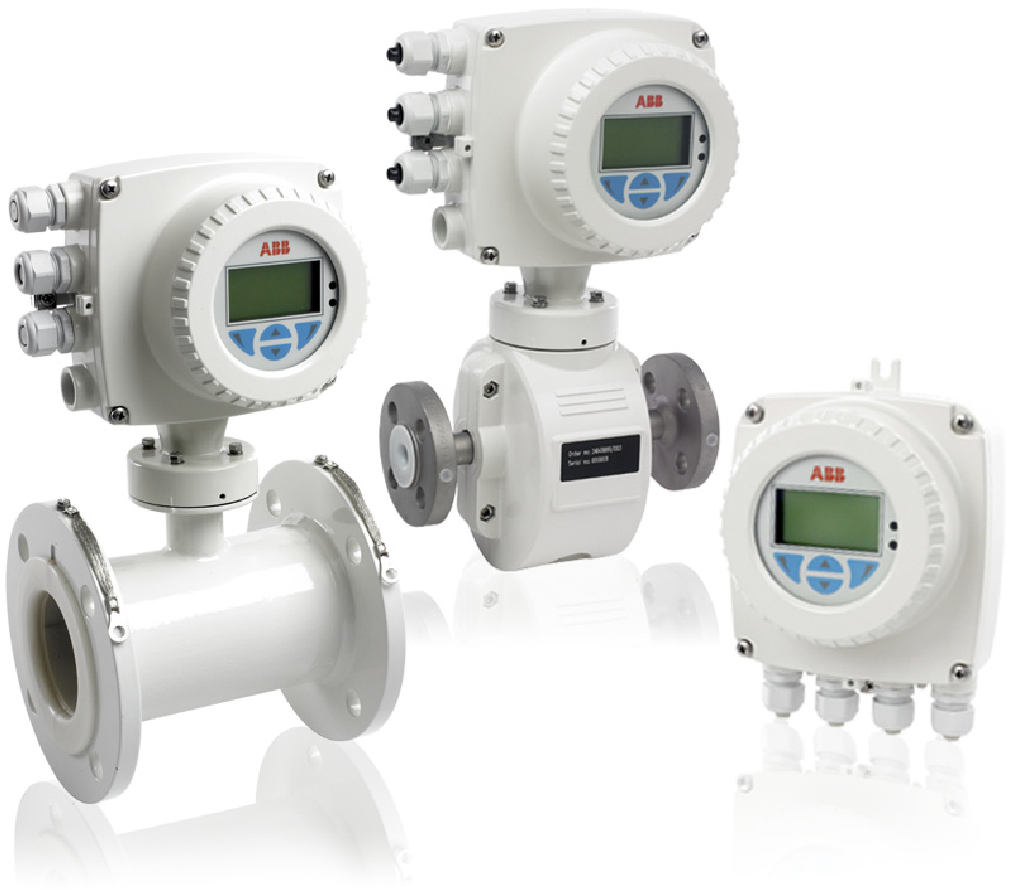

WaterMaster

Electromagnetic flowmeter

• Bi-directional flow
• Unique self-calibrating transmitter (patented) for the ultimate in stability and repeatability
• OIML-type continuous self-checking, with alarms, ensures both sensor and transmitter accuracy
• True electrode and coil impedance measurement
• Comprehensive simulation mode
• Universal switch-mode power supply (options are available for AC and DC supplies)
• Comprehensive self-diagnostics compliant with NAMUR NE107
• Programmable multiple-alarm capability
• Bus options: HART (4 to 20 mA), PROFIBUS DP (RS485), MODBUS (RS485)
• 3 configurable pulse / frequency and alarm outputs
• Advanced infrared service port supports remote HMI, HART, cyclic data out and parameter download
• VeriMaster in situ verification software available as option
• Read-only switch and ultra-secure service password for total security

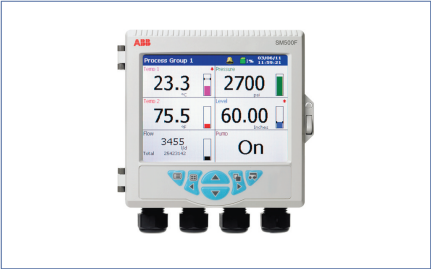

SM500F

Field mountable paperless recorder

Display

5.7” High definition colour TFT display. Process data is displayed clearly to the local operator through a variety of display formats, including chart, bargraph and digital indicator displays

Unique universal mounting capability

• wall-, pipe-, or panel-mount
• ultra-slim design, ≤ 90mm (3.5 IN.) deep

Secure data recording

• 64 MB internal Flash memory
• archiving to SD memory card

21 CFR Part 11 compliant data security

• extensive physical and electronic security features

12 software recording channels for recording of:

• up to 7 analog/digital inputs
• math function results • Modbus signals

Remote access and data retrieval

• Ethernet connectivity
• Modbus RS485 connectivity

Install into the harshest of process environments

• protection to NEMA4X and IP66 standards

Batch recording

• easy tracking of batch processes

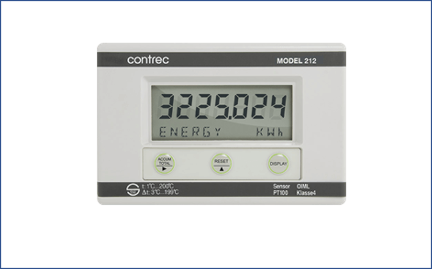

Contrec 212

Heat Calculator

• 7 digit LCD – 7 numeric digits and 11 alpha characters.
• Complies with OIML R75 and EN1434 standards
• Multilingual capability
• Heating, cooling and air conditioning
• Built-in density and enthalpy tables
• Meter-bus interface or RS485 communications
• Metric or US units
• 4-wire Pt100 RTD temperature inputs
• Fully programmable
• Calculates and displays Volume, Energy, Temperatures and
Peak Energy
• Watertight to IP66 (Nema 4X)
• High accuracy
• CE compliant
• Modbus RS485 or 4-20mA output option

CHILLER, AIRSIDE, PRECISION CONTROL UNIT

Dunham-Bush is one of the biggest commercial air conditioning companies and has long been committed to offering clean and green heating and cooling systems to meet the specific air-conditioning needs of the customers.

Some of our popular products:
