VIBRATION ISOLATOR
PSE resell a wide range of innovative products to address vibration and sound control for major industries such as HVAC, oil & gas, petrochemical, utilities, industrial & heavy machinery, etc.
In general, all products are certified to ISO 9001:2000 as quality is our commitment to customers.
Some of our bestselling products:

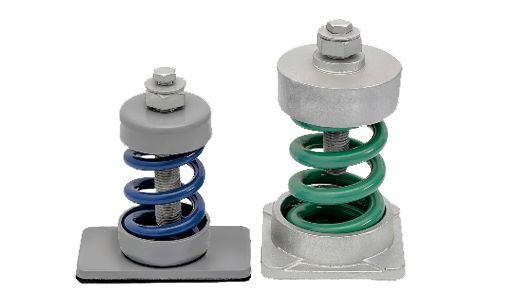

FREE STANDING SPRING MOUNT VIBRATION ISOLATOR
Features
- Four types of deflection 25mm, 50mm, 75mm & 100mm available for selection
- Set up easily and static displacement of spring can be visually checked easily
- Single spring element and multiple spring elements of 2, 4, 6 coils available for more applications
- All the outside diameter of the spring elements is greater than 80% of the height of the compressed spring element at rated load
- Color coded springs to facilitate identification
- The lateral spring stiffness is greater than 1.5 times of the rated vertical stiffness
- The height of the isolator is adjustable by eternal levelling bolt to ensure the equipment running more stable and secure
- An 8mm thick ribbed rubber damping pad bonded at the bottom of the isolator to support the weak point of spring with high frequency transmission noise and vibration
Application

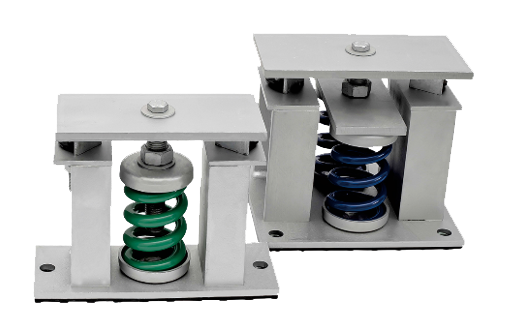

- PZF are recommended for use in isolating the vibration produced by equipment carrying a large fluid load such as chillers, cooling towers, etc.

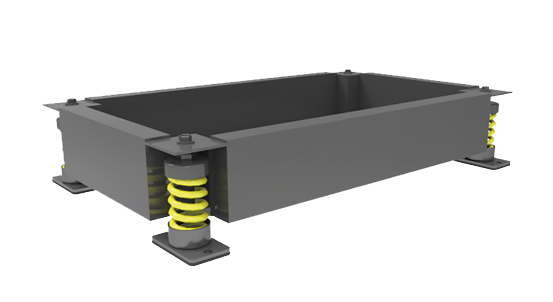

- PZE can be used in applications requiring inertia bases in addition to spring isolators: pumps, centrifugal & axial fans, etc.

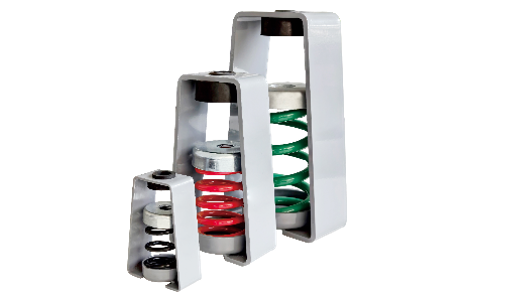

PSS SPRING ISOLATION HANGER
Features
- Springs are designed with 50% overload capacity to compensate for unexpected load variations and to reduce operating stress
- In compliance with ASHRAE guidelines, springs are designed with a horizontal stiffness of at least 100% of the vertical stiffness, to ensure stability
- The rubber element insert are molded from oil-resistant compounds and shall be color coded to indicate load capacity
- Epoxy powder coated springs and bracket with a 1000 hour salt spray rating.
- The hanger bracket are designed to carry a 500% overload without failure and to allow a support rod misalignment through a 30° arc without metal-tometal contact or other short circuit
- The hanger bracket incorporate spring caps with indexed steps which correspond to the washer diameter of the appropriately sized hanger rod to keep the rod centered in the spring cap and reduce rod misalignment
Application
- PSS hangers are used to isolate suspended sources of both noise and vibration such as air handling units, piping & ductwork, cabinet fans, inline fans, etc

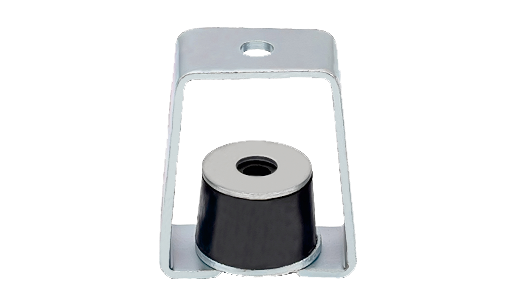

PRH VIBRATION ISOLATING RUBBER HANGER
Features
- Powder coated mild steel frame
- Colour coded rubber elements
- Cast in steel disc in rubber element
- Allow 30 degree misalignment
- No steel to steel contact on rubber element
Application
- Typical application includes air handling units, fan coil units, fans & blowers, ducting & piping, etc

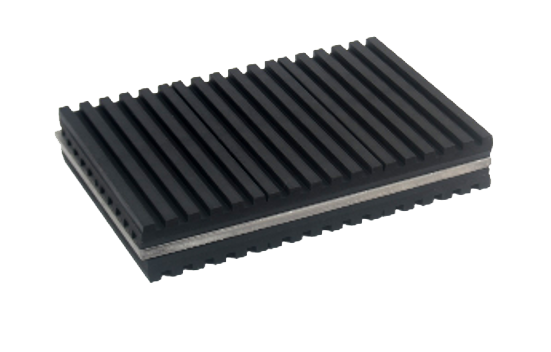

PBP RUBBER ISOLATOR PADS
Rubber pads are designed to reduce high frequency vibration, noise and shock generated by mechanical equipment. They are recommended to isolating vibration for packaged air handling units, pumps, etc, and isolation between the pipe and pipe support.
In most cases no anchor bolting is required. Properly designed ribs of upper and lower surface arranged at right angles and optimum rubber hardness reduce effectively against shock and vibration both laterally and vertically, as well as noise caused by vibration.
